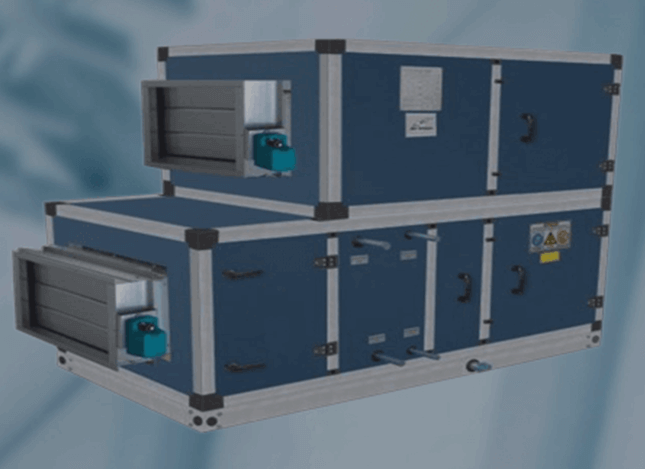

Air Handling Units

MAK Clean Air Systems is decided to Economical, well-constructed & efficient alternative to both a large and more expensive central station air handler, along with features you won’t find in a lower capacity direct drive unit. These draw through designs are available for indoor applications and are equipped with blowers that can handle high static applications. Access doors for easy maintenance and cleaning.

    MAK is offering different kind of Air handling units

  • Recirculation Air handling units
  • Once through Air handling units
  • Ventilation supply & Return air Unit
  • Single / Double Decker Air handling units
  • Air washer Units
  • Options : Heat Recovery system, Dehumidifier, Humidifying, Heating & Cooling

There are different ventilators for all sorts of functions such as exhaust, heating, cooling coil, air filter racks etc. Through the ductwork (which is connected to AHU), the conditioned air is distributed through all the corners of the building and it is equally returned to AHU as well. Who doesn’t want to waste energy and for the same reason, a cooling recovery exchanger is fitted to AHU.

    Benefits of Air Handling Units

  • Restricts cross contamination
  • Simple and safe damper for regulating air flow
  • It is a child’s play to move AHU from one place to another
  • Cost effective operating costs
  • Occupies minimal floor space
  • The units & its components are certified as under standards
  • Double skin casing is tested & approved in accordance standards
  • Centrifugal fan are AMCA certified for sound & air performance.
  • Heat transfer coils are rated & approved in accordance with ARI standard
  • Our Next Post Modular Clean Rooms
    • Special Features

    • Applications - Cooling, heating, Humidification , Ventilation.
    • Frame Work - Mainframe of self- supporting hollow extruded Aluminium profile / Thermal break construction as option.
    • Frame Panels - - Double Skin CFC / HFC free PUF/PIR injected 25 / 43 mm thick panels.
    • Various skin option available in plain GSS, pre-painted GSS, pre-plasticized GSS, Aluminium, Stainless steel as per duty requirements.
    • Fan Section - Fan Section contains belts driven DIDW Forward / Backward / Aerofoil Backward curved Centrifugal Blower & direct driven Plug Fans as per requirement.
    • Fan / Motor Assembly - Fan and Motor assembly mounted on common base frame of Extruded Aluminium Profile on vibration isolators.
    • Coil Section - Coil Section designed for CHW / HW / DX high efficiency heat transfer coils.
    • Drain Pan - Dual Slopping Stainless steel drain pan mounted on PUF insulated bottom panel with 19 mm nitrile rubber insulation.
    • Filter Section - Flat Filter Section designed pre-filters. Choice of filtration available as per required duty conditions levels.
    • Optional Sections - Mixing chamber - For Fresh Air & Return Air mixing. Manual / Motorized controls- optional.
    • Micro ‘V’ / HEPA / Bag / EU- 4 /EU- 7 / EU- 9 / EU- 13 / Special Filtrations Filter Section
    • Heat Recovery Wheel Section.
    • Dehumidifiers
    • Spray / Pan Humidification Section.
    • Other Special Sections as per individual customer requirements
